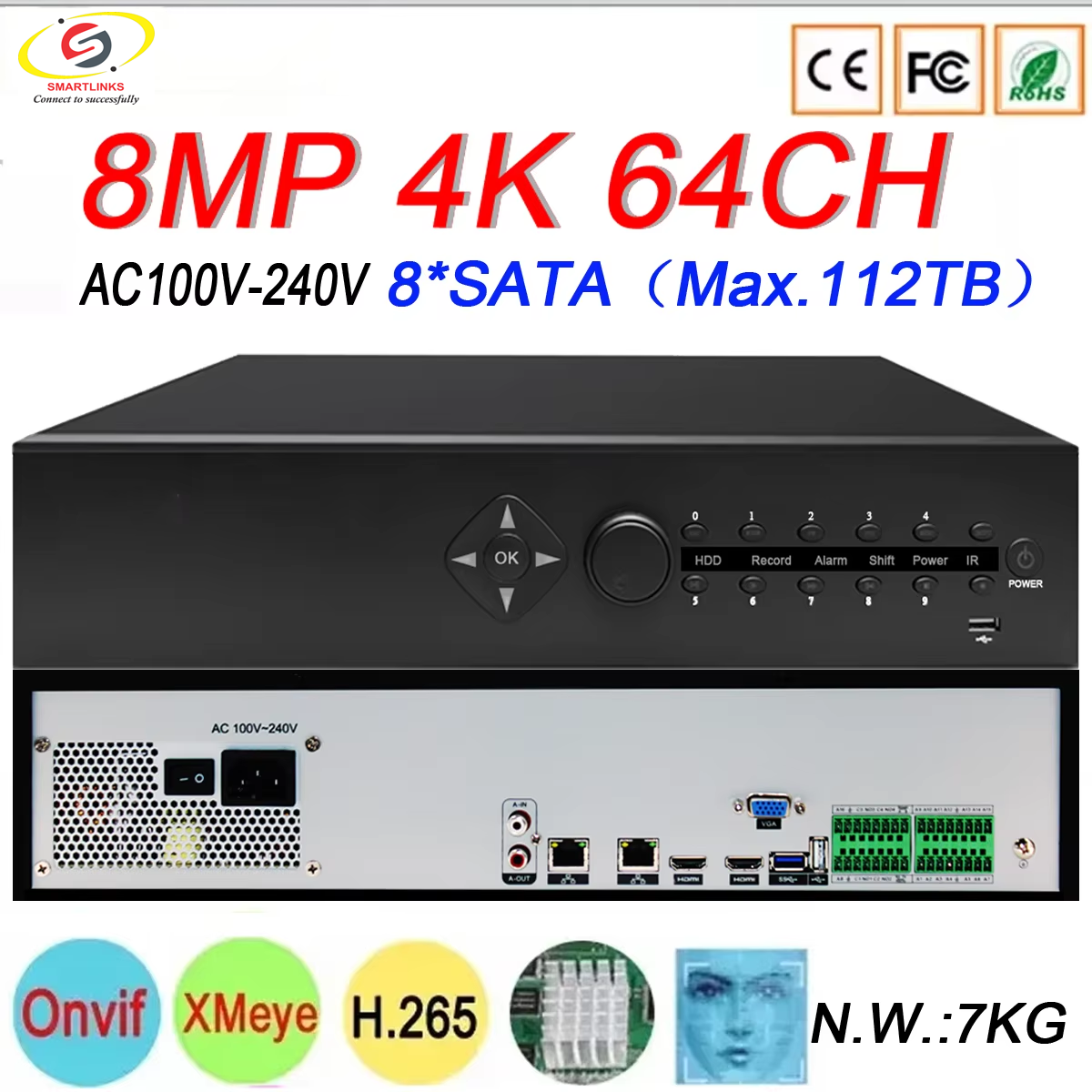

64*4K 8mp
Q:How to use face detection function?
A:It is work with AI Camera ,and click link for see operation video, link in description.(if the nvr not have the face detection function,please upgrade to newest version)

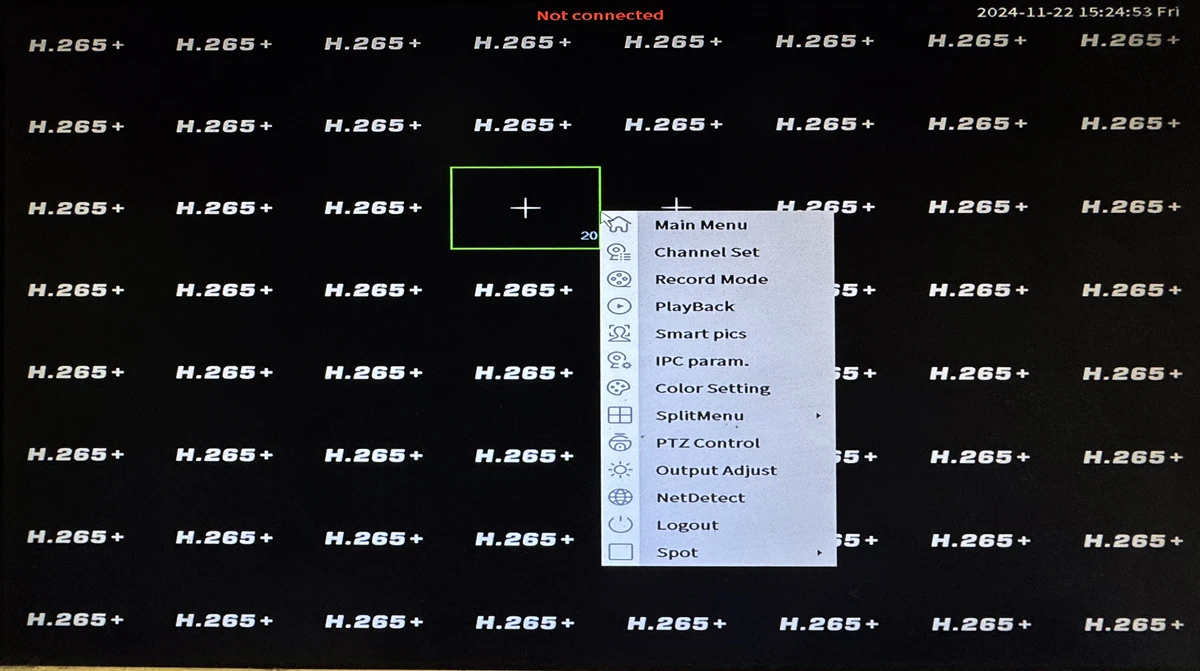

Q:What is H.265+ Compression?
A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

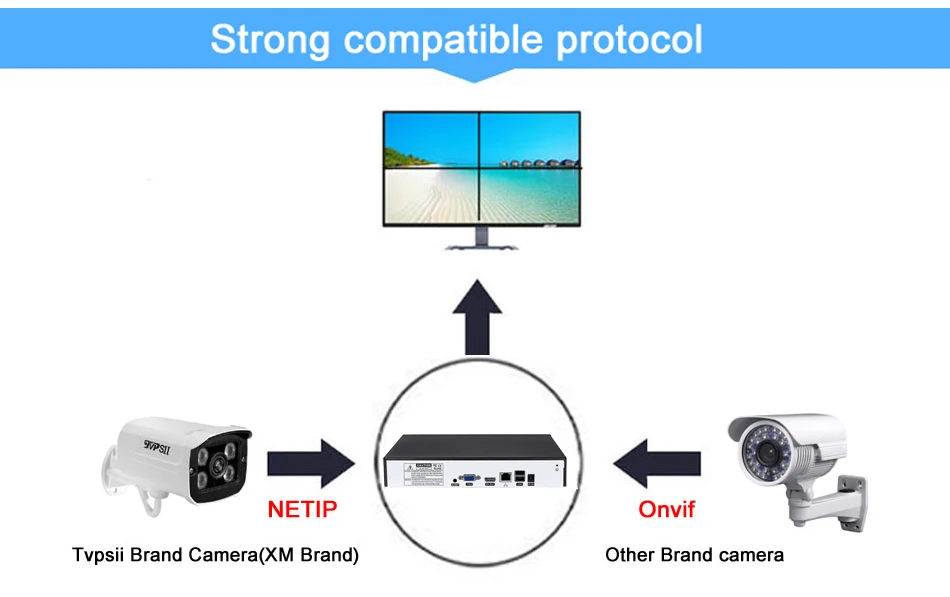

Q:Is it support other brand IP camera?
A:This nvr have NETIP protocol (XM:Xmeye and ICsee System ),onvif protocol and so on...,so if your IP camera,wifi camera ,PTZ IP camera is Tvpsii brand ,XM brand and other onvif brand ip camera,it work well.
Feature:
-
Support 64 channels of 4K video access storage
-
1 VGA output, 2 HDMI outputs, HDMI1 supports 4K output, VGA and HDMI1 are the same source, HDMI1 and HDMI2 are different sources
-
2U chassis, 8 SATA interfaces (single supports up to 14T)
-
H.265AI/H.265+ (compatible with H.265/H.264)
-
Dual Gigabit Ethernet ports support load balancing network fault tolerance and multiple network mode settings for access to different network segments
-
Support automatic networking and one-click device addition
-
Support Onvif protocol to connect to third-party devices
-
Support GB28181 protocol to access third-party platforms
-
Support cloud service network penetration and alarm information push function
-
Support remote access to built-in domain name service function (ARSP)
-
Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, IP search, alarm center, etc.
-

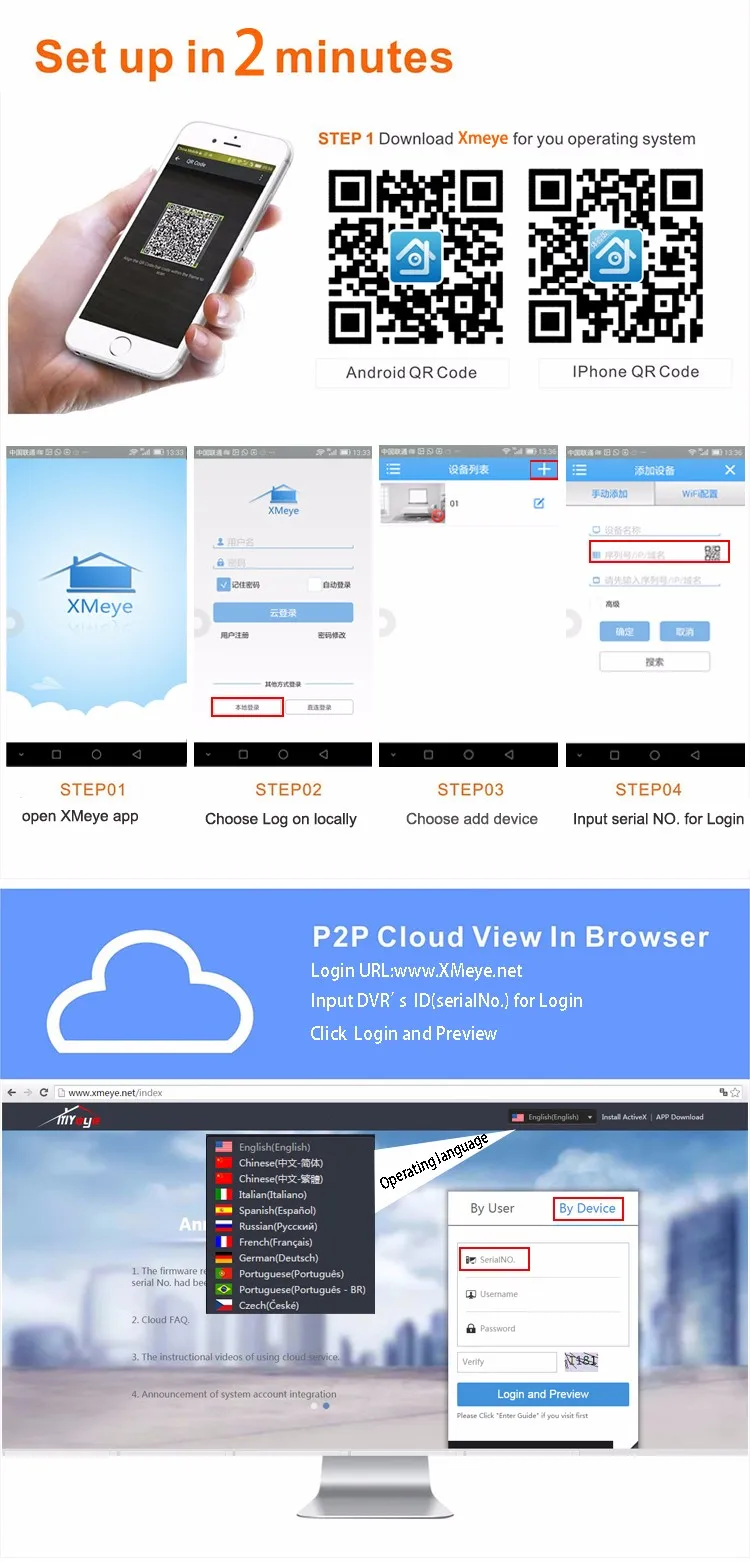

Support mobile monitoring (iOS, Android)
-
Supports multiple browsers (IE, Chrome, Firefox, Safari)
-

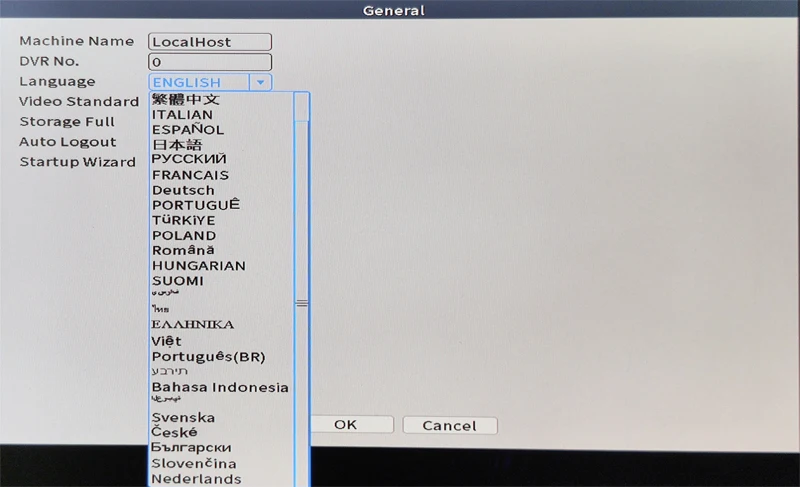

Supports more than 20 languages, breaking the restrictions of national boundaries
-
Perfect protection circuit, unique triple watchdog function
-
Supporting WEB, CMS, VMS, MYEYE platform, providing SDK development
-
Supports multi-eye devices
-
Supports intelligent functions such as face detection, human shape detection, vehicle shape detection, face playback, vehicle model playback, etc.
|
|
Model |
TSL-64CHX576 4K 8HDD |
|
System |
Main processor |
NT98336 |
|
Operating System |
Embedded Linux |
|
|
System resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
|
Video |
Video input (IP) |
64CH*4K |
|
Video compression |
H.265A,H.265+/H.264 |
|
|
Display quality |
Max:4K |
|
|
Playback(Real-time + non-real-time) |
4K(1+1)/5M(3+1)/4M(4+1)/3M(5+1)/1080P(8+2) |
|
|
Motion detection |
Support(depend on camera) |
|
|
Audio |
Audio compression |
G.711A |
|
Intercom |
support |
|
|
Record & playback |
Recording mode |
Manual>Alarm>Dynamic Detection>Timing |
|
Search mode |
Search by Time/Calendar/Event/Channel |
|
|
Record storage |
HDD、Network |
|
|
Backup mode |
Network backup, USB hard disk, USB burner, SATA burner |
|
|

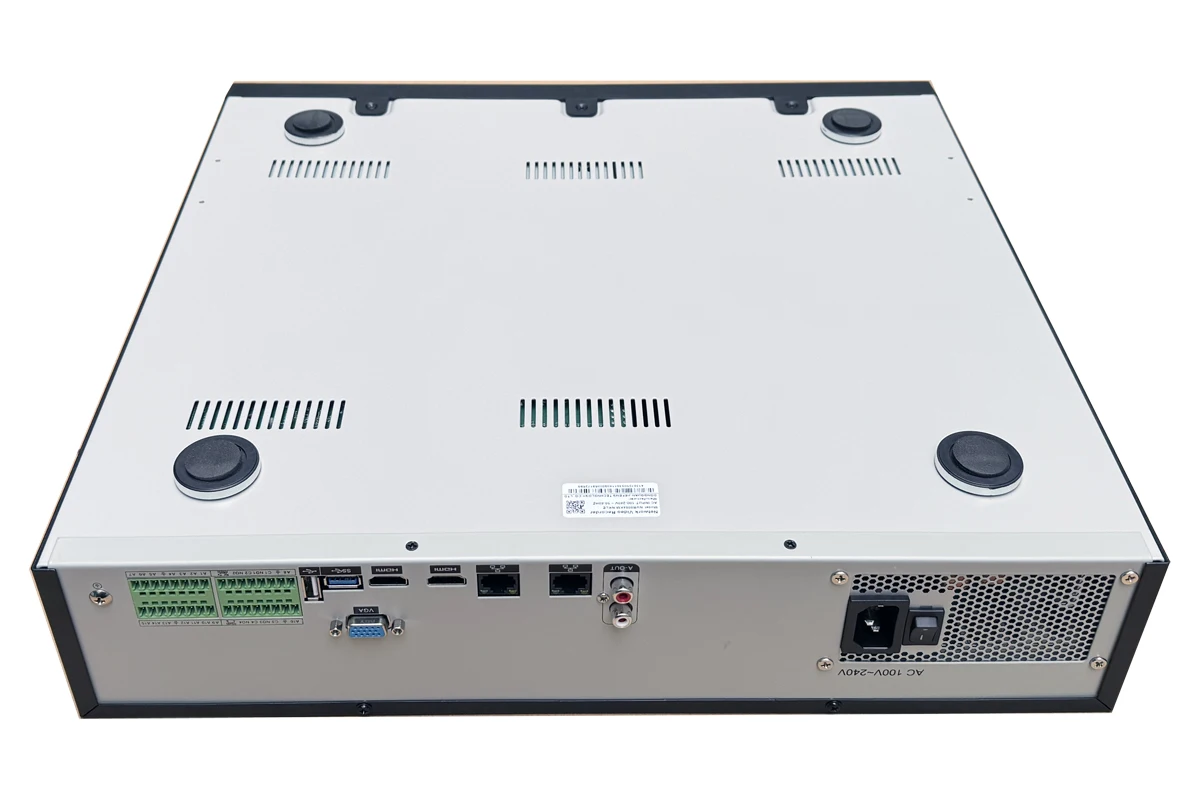

External interface |
Video output |
1ch VGA，1ch HDMI HD output |
|
Audio I/O |
/1 |
|
|
Alarm I/ |
16/4 |
|
|
Network interface |
2*RJ45 10M/100M/1000M Adaptive Ethernet port |
|
|
USB interface |
2*USB 2.0 ports,1*USB 3.0 port |
|
|
HDD |
8 SATA(Up to 8TB for each disk) |
|
|
Serial Interface |
1 RS485, 1 RS232 |
|
|
VGA |
1 VGA port (output resolution: MAX 1080P) |
|
|
HDMI |
2 HDMI outputs, HDMI1 supports 4K output, VGA and HDMI1 are the same source, HDMI1 and HDMI2 are different sources |
|
|
Other |
ONVIF |
Support |
|
Power Consumption |
<10W(Without HDD) |
|
|
Work environment |
Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
|
|

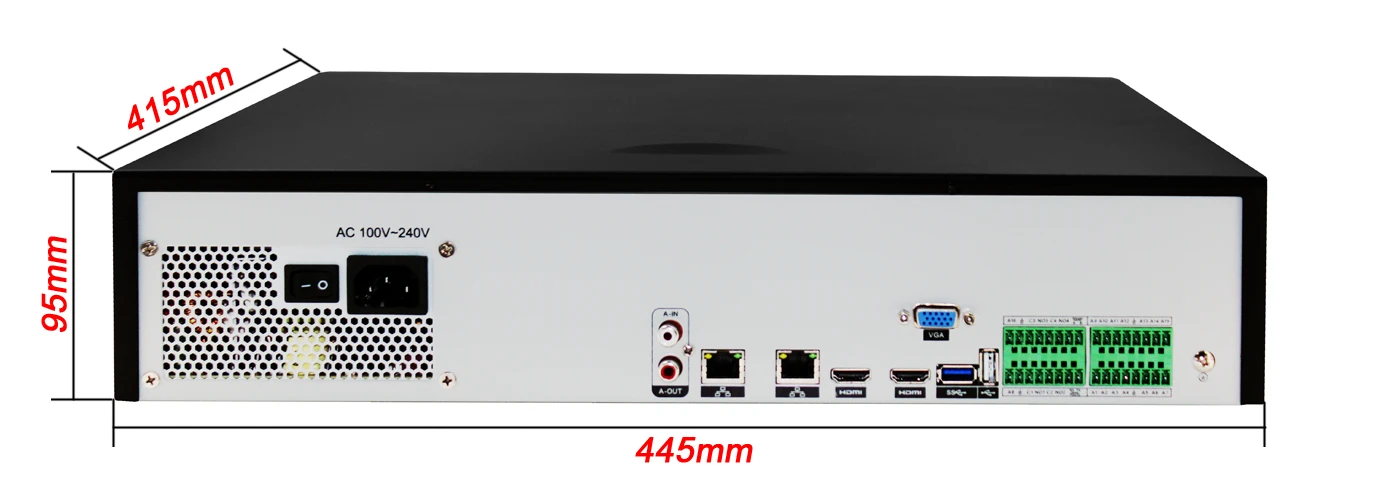

Dimension(Motherboard) |
445mm*415mm*95mm |
|
|
Weight |
7.5kg |
Friendly Reminder:
-
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information,Thanks!
-
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!
-
if you have some request for custom clrearance and Tariff, please leave message in order or sent messages by other communication APP,Thanks!

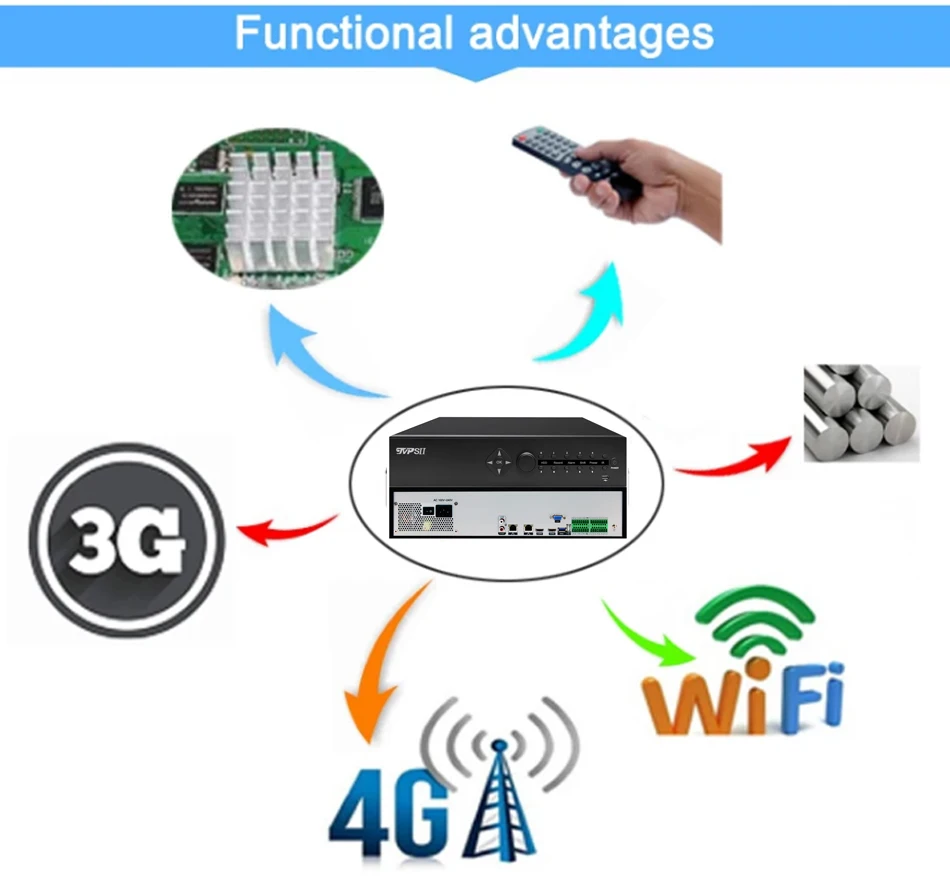

Our Surveillance Video Recorder NVR have heat sink,metal material (long life),remote control,3G(4G)function,WIFI function and so on, quality assurance.
